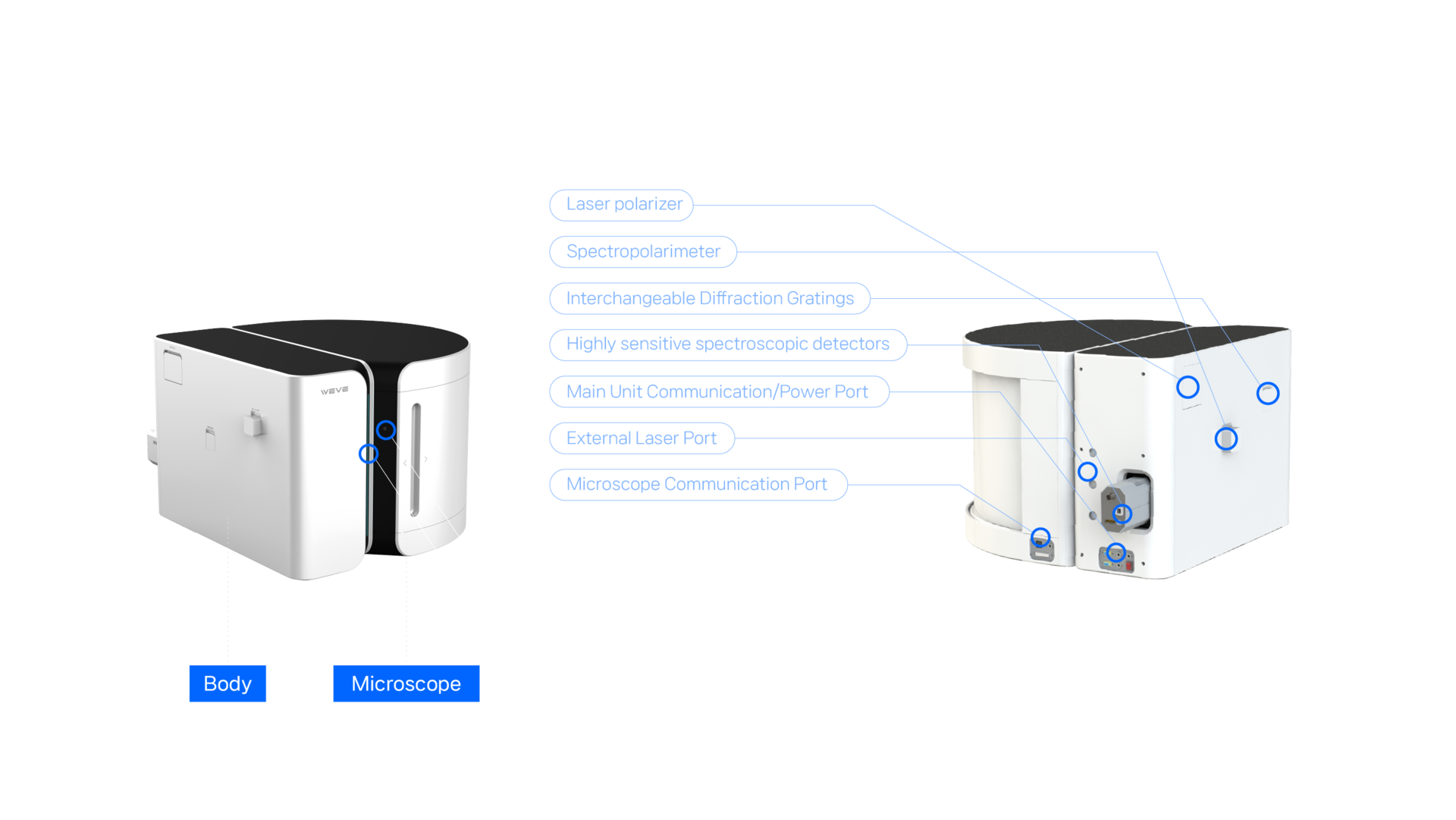

Feature & Specification

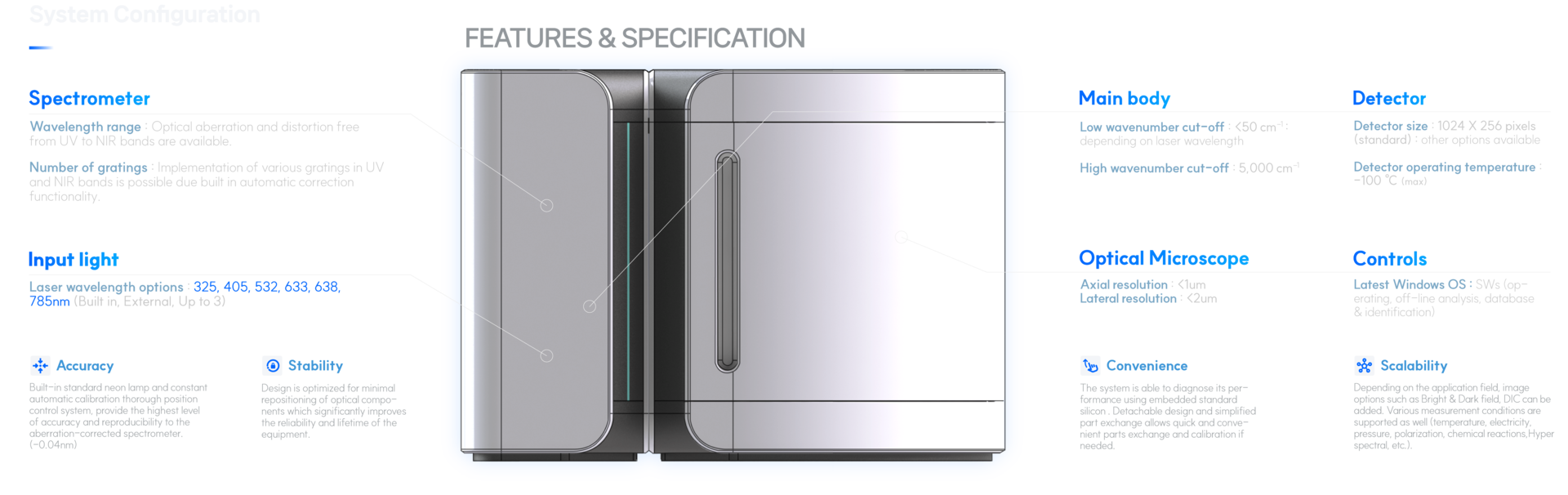

We deliver a user-focused Raman spectroscopy system that ensures ease of use, speed, and precision, through a structurally differentiated design from conventional analytical instruments.

Detector

• TE cooled CCD
• Pixel Size 26x26 ㎛
• Active pixels 1024 x 127
• High-sensitivity TE-cooled CCD detector with selectable BVF or OE models

Motorized microscope xyz stage

• Travel Range: 75 × 52 mm
• Minimum Step Size: 0.05 μm (XY), 0.002 μm (Z)
• Mapping Speed: 50 × 50 pixels < 1 min (based on 0.01 s CCD exposure time)


Laser Module

• Supports selection of up to three lasers : 532 nm, 633 nm, 785 nm, etc.. Additional wavelengths available upon request (UV to NIR range: 325–785 nm)
• Fine adjustment of laser output via continuous ND filter control
• Automated laser switching control


Spectroscopy


• 250 mm focal length, aberration-corrected spectrometer
• Compatible with 14 distinct types of on-axis gratings, surpassing the versatility of standard systems
• Spectral resolution: 1.5 cm⁻¹ per CCD pixel @ 1800 gr/nm, 532 nm laser
  Spectral resolution: 2.3 cm⁻¹ per CCD pixel @ 1200 gr/nm, 532 nm laser

Microscope

• Objectives from 5× to 100×, supporting dry, water, and oil immersion types
• Spatial resolution : lateral resolution < 1 μm (XY), axial resolution < 2.0 μm @ 100×, N.A 0.95
• Uniform illumination achieved through precision optical design, equipped with a 3M CMOS camera




Automation

• DualTrack™ Automatic Calibration System : Built-in standard lamp and standard sample for continuous equipment monitoring and automatic calibration

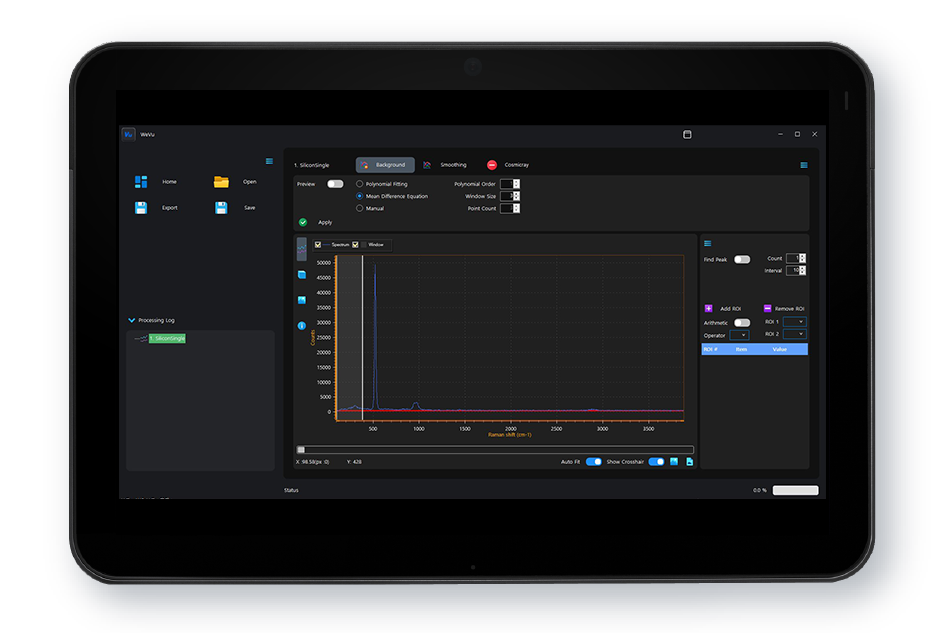

• Fully Automated Control : Automation of measurement, data acquisition, and equipment setup to ensure consistent measurement conditions
• Automated Polarization Control and Measurement (scheduled for update by 2025): Integration of polarization control and measurement functions

BVF (Back-illuminated, fringe-suppressed)

*Strengths - High quantum efficiency (QE) with excellent sensitivity in low-light and near-infrared (NIR) regions

*Weaknesses - Fringe patterns may occur in the NIR region above 750 nm, potentially introducing noise into the analysis


Measurement of weak Raman/PL signals in the near-infrared (NIR) region (e.g., biological samples, NIR Raman)

OE (Open Electrode)

*Strengths - Stable baseline with no fringe patterns in the NIR region

*Weaknesses - Lower quantum efficiency compared to BVF, with reduced sensitivity in UV and NIR regions


Suitable for strong Raman or PL signals in the visible range (e.g., polymers, inorganic materials), especially where baseline stability is critical

Bio (Cells, Tissues)

*Recommended Laser Wavelength(s) - 785 nm (low fluorescence), 633 nm (alternative)

*Criteria for Wavelength Selection - Minimizes fluorescence background in biological samples

SERS (Surface-Enhanced Raman)

*Recommended Laser Wavelength(s) - 532 nm (strong enhancement), 633 nm (less heating)

*Criteria for Wavelength Selection - 532 nm and 633 nm enhance Raman signals through resonance with metallic nanostructures

Material Science (Polymers, Semiconductors)

*Recommended Laser Wavelength(s) - 532 nm, 488 nm (good resolution)

*Criteria for Wavelength Selection - High Raman intensity with low fluorescence leads to efficient signal acquisition

Carbon Materials (Graphene, CNT)

*Recommended Laser Wavelength(s) - 532 nm, 633 nm (Raman efficiency vs fluorescence trade-off)

*Criteria for Wavelength Selection - Balances between strong Raman scattering and moderate fluorescence

PL Measurement (Quantum Dots, Semiconductors)

*Recommended Laser Wavelength(s) - 325 nm (for UV excitation), 488 nm (common for visible-range PL)

*Criteria for Wavelength Selection - This wavelength range efficiently excites electronic transitions, with shorter wavelengths offering higher PL efficiency and wider measurement bandwidth.
